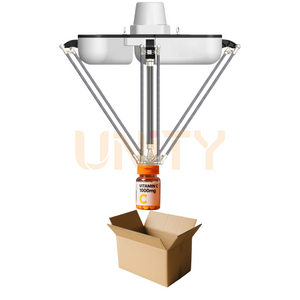

A delta robot, commonly designed with 4 axis, is widely utilized for high-speed sorting, stacking, and packaging operations. In food processing, where strict hygiene standards are essential, the food grade delta robot is constructed from sanitary materials to prevent product contamination in sensitive environments.
Specifically for food handling applications, stainless steel is often used for the frame, while the conveyor belts comply with food-grade requirements, ensuring full adherence to hygiene regulations. High speed delta robot is also its feature.
Hygienic delta robot system can process meat, fruit, snacks, ketchup and other bagged products, and it’s widely applied in the field of food automation production.
A delta robot, commonly designed with 4 axis, is widely utilized for high-speed sorting, stacking, and packaging operations. In food processing, where strict hygiene standards are essential, the food grade delta robot is constructed from sanitary materials to prevent product contamination in sensitive environments.
Specifically for food handling applications, stainless steel is often used for the frame, while the conveyor belts comply with food-grade requirements, ensuring full adherence to hygiene regulations. High speed delta robot is also its feature.
Hygienic delta robot system can process meat, fruit, snacks, ketchup and other bagged products, and it’s widely applied in the field of food automation production.
Food grade delta robot is compatible with various intelligent devices essential for food sorting: high-precision 2D/3D vision cameras (for identifying the size, shape, and defects of fruits and vegetables) and food-grade robotic grippers (for grasping diverse materials and shapes).
enabling precise control of workpiece position and reducing defect rates of delta robot.
High speed delta robot enables faster motion response and reduced cycle time, which achieves rapid grasping and packaging operations.
By quickly changing end effectors (such as suction cups and grippers), the delta robot can adapt to various grippers.
The delta robot's compact structure and small footprint conserve workshop space.
Food grade delta robot is compatible with various intelligent devices essential for food sorting: high-precision 2D/3D vision cameras (for identifying the size, shape, and defects of fruits and vegetables) and food-grade robotic grippers (for grasping diverse materials and shapes).
enabling precise control of workpiece position and reducing defect rates of delta robot.
High speed delta robot enables faster motion response and reduced cycle time, which achieves rapid grasping and packaging operations.
By quickly changing end effectors (such as suction cups and grippers), the delta robot can adapt to various grippers.
The delta robot's compact structure and small footprint conserve workshop space.
Model | YNT-A3Z-0800 Series | YNT-A3Z-1200 Series | YNT-A3Z-1400 Series | ||||
YNT-A3Z-0805 | YNT-A3Z-0810 | YNT-A3Z-1205 | YNT-A3Z-1210 | YNT-A3Z-1405 | YNT-A3Z-1410 | ||
Axis | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | |
Max Playload | 5kg | 10kg | 5kg | 10kg | 5kg | 10kg | |
Rotation range | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | |
Arm angle range | Upward Swing | 29.5° | 29.5° | 29.5° | 29.5° | 29.5° | 29.5° |
Downward swing | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | |
Robot Body | Weight | 62kg | 62kg | 78kg | 78kg | 80kg | 80kg |
Moving Range | 800mm | 800mm | 1200mm | 1200mm | 1400mm | 1400mm | |
Repeat positioning accuracy | Position | ±0.02mm | |||||
Rotation | 0.1° | ||||||
Maximum moving frequency | 260PP/min | 240PP/min | 240PP/min | 200PP/min | 200PP/min | 180PP/min | |
Rated Power Consumption | 2.35kw | 2.35kw | 4.7kw | 4.7kw | 6.2kw | 6.2kw | |
Voltage | 220VAC,50HZ | 220VAC,50HZ | 380VAC,50HZ | 380VAC,50HZ | 380VAC,50HZ | 380VAC,50HZ | |
Temperature | -10°C~70°C | ||||||
Working Environment | -10°C~50°C,RH≤80% | ||||||
Noise Level | <75dB | ||||||
Protection Grade | IP54 | ||||||
Model | YNT-A3Z-0800 Series | YNT-A3Z-1200 Series | YNT-A3Z-1400 Series | ||||
YNT-A3Z-0805 | YNT-A3Z-0810 | YNT-A3Z-1205 | YNT-A3Z-1210 | YNT-A3Z-1405 | YNT-A3Z-1410 | ||
Axis | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | 3+1 | |
Max Playload | 5kg | 10kg | 5kg | 10kg | 5kg | 10kg | |
Rotation range | ±360° | ±360° | ±360° | ±360° | ±360° | ±360° | |
Arm angle range | Upward Swing | 29.5° | 29.5° | 29.5° | 29.5° | 29.5° | 29.5° |
Downward swing | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° | |
Robot Body | Weight | 62kg | 62kg | 78kg | 78kg | 80kg | 80kg |
Moving Range | 800mm | 800mm | 1200mm | 1200mm | 1400mm | 1400mm | |
Repeat positioning accuracy | Position | ±0.02mm | |||||
Rotation | 0.1° | ||||||
Maximum moving frequency | 260PP/min | 240PP/min | 240PP/min | 200PP/min | 200PP/min | 180PP/min | |
Rated Power Consumption | 2.35kw | 2.35kw | 4.7kw | 4.7kw | 6.2kw | 6.2kw | |
Voltage | 220VAC,50HZ | 220VAC,50HZ | 380VAC,50HZ | 380VAC,50HZ | 380VAC,50HZ | 380VAC,50HZ | |
Temperature | -10°C~70°C | ||||||
Working Environment | -10°C~50°C,RH≤80% | ||||||
Noise Level | <75dB | ||||||
Protection Grade | IP54 | ||||||
Bread packet slides onto the conveyor belt and is positioned by the visual system. The position is transmitted to the delta robot, which realizes high-speed grasping and loading.

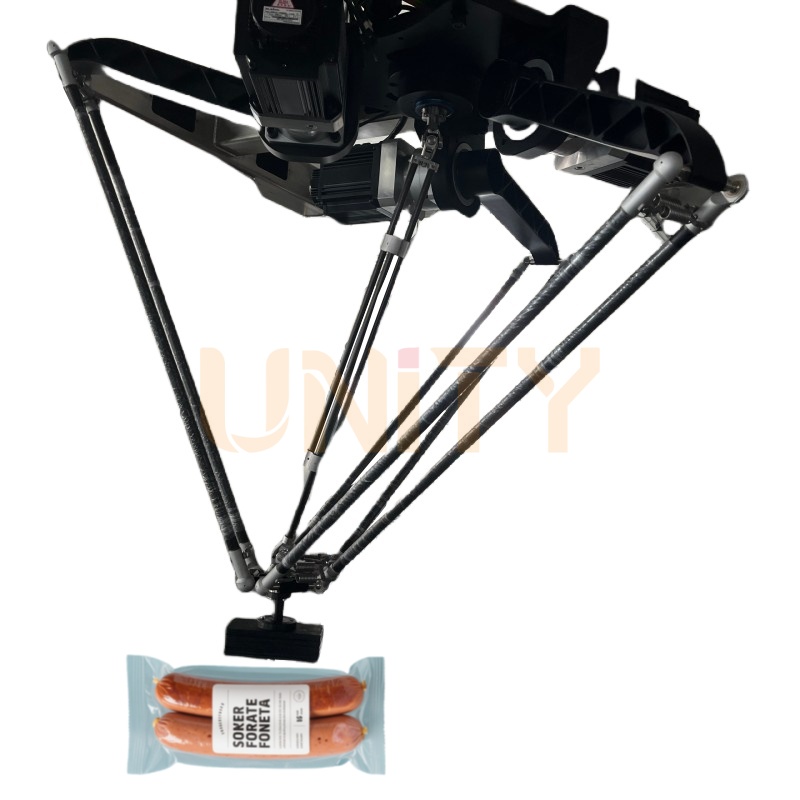

With a customized gripper, delta robot can pick 5 units sausages at once and load it.
Through the material processing line, it is transferred to conveyor belt and can be sorted and packed through delta robot.
Delta robot can achieve automatic packing line for snacks bags.
Bread packet slides onto the conveyor belt and is positioned by the visual system. The position is transmitted to the delta robot, which realizes high-speed grasping and loading.
With a customized gripper, delta robot can pick 5 units sausages at once and load it.
Through the material processing line, it is transferred to conveyor belt and can be sorted and packed through delta robot.
Delta robot can achieve automatic packing line for snacks bags.
