Delta robots represent the pinnacle of high-speed automation technology, designed to deliver exceptional precision and throughput in demanding industrial environments. As a leading delta robot manufacturer in China, UNITY specializes in customizable parallel kinematics systems that excel in pick and place operations, sorting, and packaging applications. Our industrial delta robots combine advanced parallel delta robot design with cutting-edge servo motors and intelligent vision systems, achieving speeds up to 260 picks per minute while maintaining positioning accuracy of ±0.02mm.

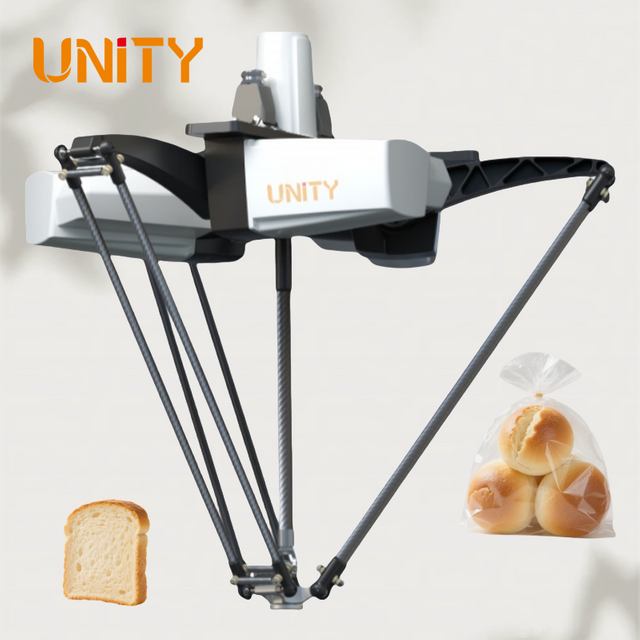

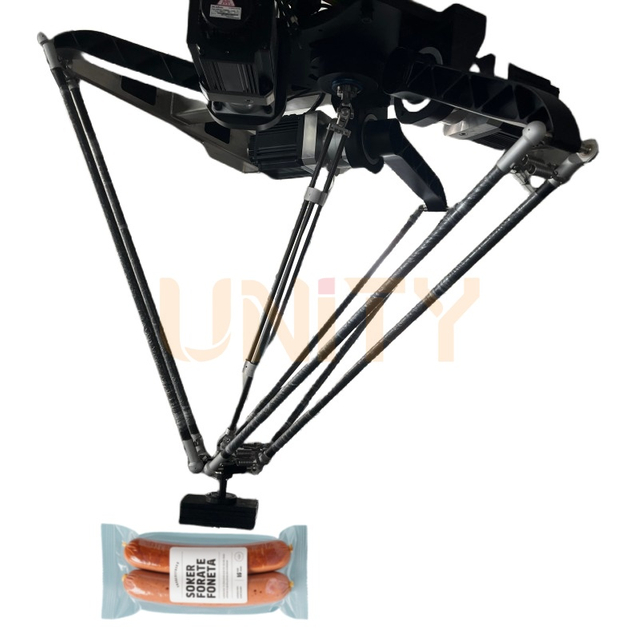

UNITY's delta robot systems are engineered to meet the diverse automation needs of multiple industries. In food processing, our food-grade delta robots feature washdown-compatible stainless steel construction and IP54 protection, ensuring compliance with strict hygiene standards while handling bread, meat, candies, and other products. The pharmaceutical sector benefits from our high-precision sorting capabilities, where automated cookie sorting and case packing solutions guarantee gentle handling of sensitive products. Electronics manufacturers leverage our delta robot technology for rapid component placement, while agricultural applications utilize specialized systems such as our strawberry processing equipment for automated produce handling.

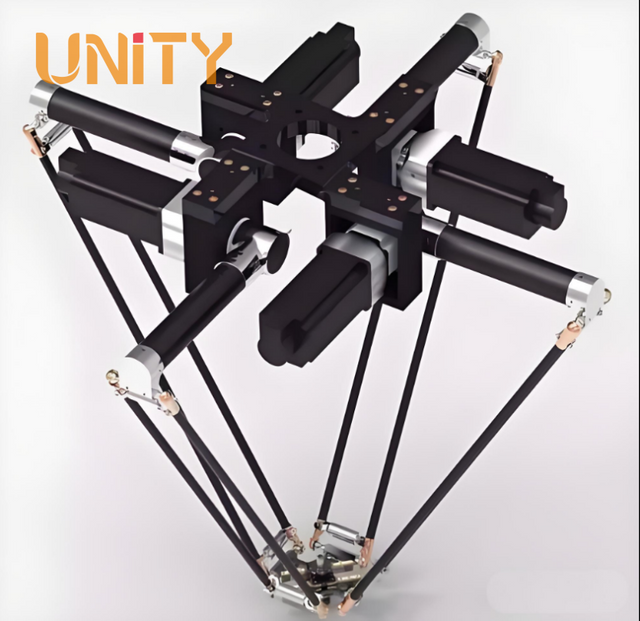

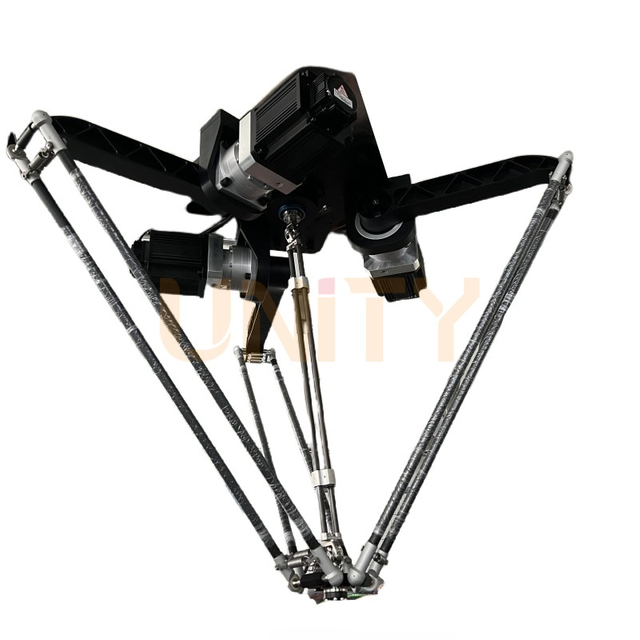

The fundamental strength of delta robot architecture lies in its parallel kinematics mechanism, where three lightweight arms connect to a fixed base through ball joints and servo motors. This configuration positions all servo motors on the stationary base rather than the moving arms, dramatically reducing inertia and enabling rapid acceleration cycles that traditional robotic arms cannot match. Our systems support both 3-axis and 4-axis configurations, with the additional rotational axis providing enhanced flexibility for complex end effector operations. The parallel delta robot structure creates a spherical working envelope ranging from 800mm to 1400mm diameter, optimizing workspace utilization while maintaining compact equipment footprints ideal for space-constrained production lines.
Delta robot kinematics calculations enable precise control throughout the entire work envelope, with inverse kinematics algorithms continuously adjusting arm angles to maintain tool center point accuracy. This mathematical precision, combined with our proprietary controller software, ensures consistent performance even during high-speed conveyor tracking operations. The lightweight carbon fiber and aluminum construction of our delta robot arms further enhances dynamic performance, allowing cycle times under 0.25 seconds for typical pick and place sequences.
Selecting an appropriate delta robot system requires careful consideration of three critical parameters. Payload capacity ranges from 5kg to 10kg across our product line, with visual delta robots optimized for lighter objects requiring vision-guided precision, while heavy-duty models handle up to 10kg for case packing and bulk sorting applications. Working envelope dimensions must accommodate your production line layout, with our 0800 series suited for compact workstations, the 1200 series for medium-scale operations, and 1400 series models providing maximum reach for large-format packaging lines.

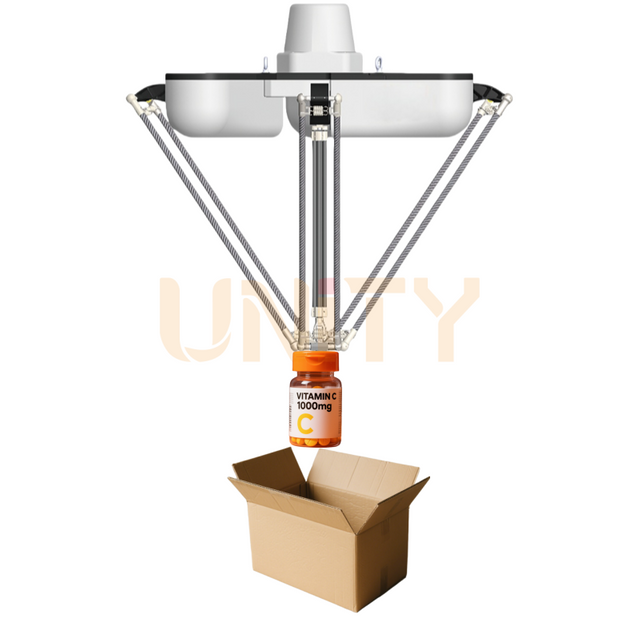

Cycle time requirements determine the optimal model selection, as maximum moving frequency varies from 180 to 260 picks per minute depending on configuration. Applications demanding the highest throughput benefit from our YNT-A3Z-0805 model achieving 260PP/min, while heavier payload operations utilize the YNT-A3Z-1410 optimized for sustained performance with 10kg loads. Environmental factors also influence system design, with food industry installations requiring hygienic construction and pharmaceutical applications potentially needing cleanroom-certified components. Integration considerations include controller compatibility with existing PLC systems, end effector interface specifications, and conveyor tracking capabilities for dynamic picking scenarios.
UNITY delta robots feature modular architecture facilitating seamless integration with existing production infrastructure. Our systems support standard industrial communication protocols including EtherCAT, PROFINET, and Modbus TCP, ensuring compatibility with major PLC brands. The delta robot controller includes built-in conveyor tracking functionality, enabling synchronized pick and place operations from moving belts without production line modifications. Vision system integration utilizes industry-standard protocols, supporting both 2D and 3D camera systems for advanced object recognition, quality inspection, and defect sorting capabilities.
End effector customization represents a critical integration element, with our engineering team designing application-specific grippers ranging from vacuum suction arrays for flexible packaging to mechanical grippers for rigid containers. The delta robot gripper mounting interface follows ISO standards, allowing rapid changeover between different products or package formats. We provide comprehensive technical documentation including CAD models, kinematics calculations, and simulation software to streamline project planning and virtual commissioning phases. Our service and training programs ensure your maintenance team develops expertise in routine service procedures, minimizing downtime and maximizing equipment lifespan.
What is the difference between 3-axis and 4-axis delta robots?
A 3-axis delta robot provides X, Y, and Z linear motion within the working envelope, suitable for straightforward pick and place tasks where part orientation remains constant. The 4-axis configuration adds a rotational axis at the end effector, enabling the delta robot to adjust product orientation during handling. This fourth axis proves essential for applications requiring precise angular positioning, such as inserting products into containers at specific angles or aligning asymmetric parts for vision inspection. The additional axis increases system complexity and cost but expands application versatility significantly.
How do delta robots achieve such high speeds compared to traditional robotic arms?
Delta robot speed advantages stem from the parallel kinematics design placing all servo motors on the fixed base rather than moving joints. This configuration minimizes the moving mass that must be accelerated and decelerated during each cycle, reducing inertia by up to 70% compared to serial-link robot arms. Lower inertia enables faster acceleration profiles and higher peak velocities while maintaining positional accuracy. The lightweight carbon fiber arms and optimized kinematics further enhance dynamic performance, allowing our high speed delta robot systems to achieve up to 260 picks per minute in production environments.
What maintenance requirements do delta robots have?
Delta robot maintenance focuses on periodic inspection and lubrication of ball joints connecting the arms to the base and platform. These joints experience the highest wear due to continuous articulation during operation. We recommend monthly visual inspections of joint condition and quarterly lubrication using specified food-grade or industrial lubricants depending on application environment. Servo motor bearings typically require no maintenance for the first 20,000 operating hours. Belt tension on 4-axis rotational drives should be checked quarterly and adjusted if necessary to prevent slippage or premature wear. Vision system cameras require lens cleaning based on environmental conditions, ranging from weekly in dusty environments to monthly in controlled settings. Our comprehensive maintenance documentation provides detailed procedures and recommended spare parts inventory for minimizing unexpected downtime.
Can delta robots work in harsh environments like washdown areas?
Yes, our food-grade delta robots are specifically engineered for harsh washdown environments common in food and beverage production. These systems feature IP65-rated enclosures protecting electrical components from high-pressure water jets and cleaning chemicals. Stainless steel construction throughout the frame and arms resists corrosion while meeting FDA contact requirements for direct food handling. Sealed servo motors and protected cabling prevent moisture ingress during daily sanitation procedures. For pharmaceutical applications, we offer cleanroom-compatible configurations with smooth surfaces minimizing particle accumulation and materials certified for ISO Class 7 environments. Learn more about industry-specific solutions on our industries page.
UNITY's delta robot technology delivers measurable productivity improvements through reduced cycle times, improved accuracy, and enhanced flexibility compared to manual operations or traditional automation. Our engineering team collaborates with your production staff to analyze current processes, identify optimization opportunities, and design integrated solutions addressing your specific challenges. From initial concept through installation, commissioning, and ongoing support, UNITY provides comprehensive automation expertise ensuring successful project outcomes.
Discover how our advanced delta robot systems can transform your production line efficiency. Explore our resources section for case studies, technical white papers, and application videos demonstrating real-world performance. Ready to discuss your automation requirements? Contact us today for a customized solution proposal and ROI analysis tailored to your operation.
