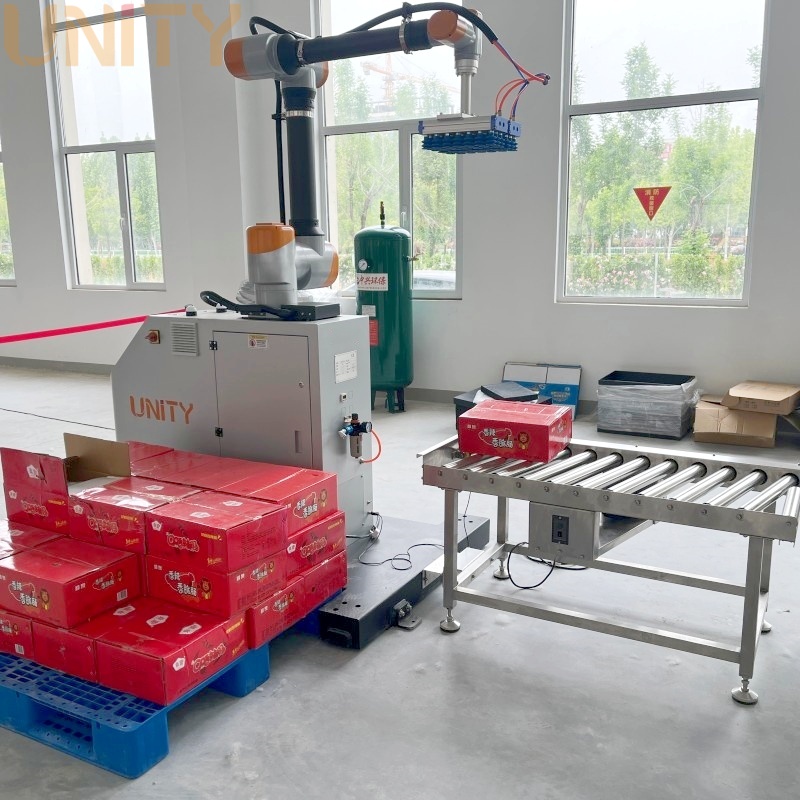

Cobot Robot is to pick and place goods in packing industry. It’s also named as automatic robot palletizer or bag palletizing robot. With Flexible robot arms, it’s able to achieve movement in different directions.
The palletizing robot usually loads from 1kg to 40kg. It adapts to various pack weight within this range.
By having a palletizer cobot perform the work of a production worker, the production worker would be able to focus on other tasks. Tasks that require creativity and solution-oriented thinking, such as maintenance or quality control.
China cobot robot is still under high speed development. As our factory is located in China, our cobot robots have been tested in various scenarios in local automation packing lines. The Robot arm and column are made of high-strength materials and can withstand long-term use.
Product Advantages
1. Easy to install
Cobot Robot are highly integrated into existing processes.
2. Programmable
Cobots are very easy to program. They can be set for different jobs, which helps to make productivity as high as possible and cut labor costs.
3. Applicable in many industries
Cobot Robot can work in lots of industries, like cars and making food and drinks, biopharmaceuticals, etc.
4. Improve productivity:
Cobots are made to make processes better and increase how much gets done. By making boring tasks automatic, cobots help businesses save time and money while making everything work better.
Technical Parameters
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |
Product Uses
1. Manufacturing: Collaborative robots can perform repetitive or high-precision tasks in manufacturing. This includes assembly lines, quality control inspections, and material handling.
2. Healthcare: Collaborative robots assist healthcare providers in areas such as patient care, drug delivery, and rehabilitation exercises.
3. Agriculture: Collaborative robots help farmers harvest, plant, and monitor crop health, thereby improving agricultural efficiency.
4. Logistics and warehousing: Collaborative robots improve efficiency and accuracy by handling repetitive tasks such as picking, packing, and inventory management.
