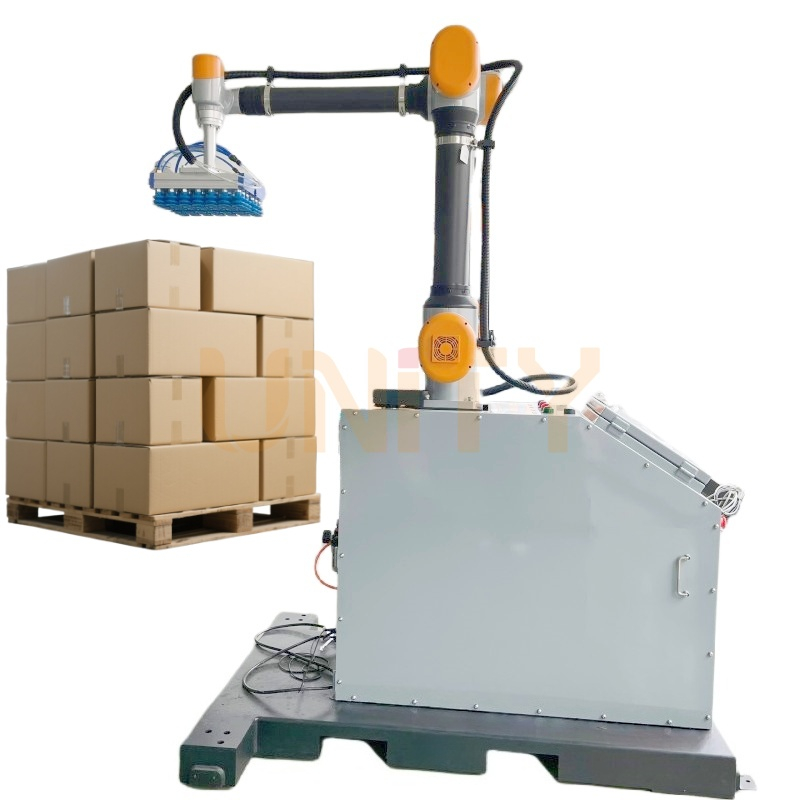

An automated cobot palletizer is an integrated system using a collaborative robot arm as its primary component. The collaborative robot palletizer uses sensors to identify the location, shape, and size of items. Then, a control system carrys out palletizing plan, picking items from the conveyor belt and placing them on pallets.
Designed with "human-robot collaboration" as its core concept, the box cobot palletizer operates without safety fence. Full-body force feedback sensors and collision detection technology ensure safe collaboration with workers.
Our safe cobot palletizer can be equipped with an optional radar detection system, which can sensitively sense human on the left,right and back sides of the robot and halt operation immediately. This feature of cobot palletizer workstation is highly demanded in Europe and some American countries due to the importance of safe operation.
UNITY has in stock cobot palletizer in own factory, which makes fast delivery guaranteed.
An automated cobot palletizer is an integrated system using a collaborative robot arm as its primary component. The collaborative robot palletizer uses sensors to identify the location, shape, and size of items. Then, a control system carrys out palletizing plan, picking items from the conveyor belt and placing them on pallets.
Designed with "human-robot collaboration" as its core concept, the box cobot palletizer operates without safety fence. Full-body force feedback sensors and collision detection technology ensure safe collaboration with workers.
Our safe cobot palletizer can be equipped with an optional radar detection system, which can sensitively sense human on the left,right and back sides of the robot and halt operation immediately. This feature of cobot palletizer workstation is highly demanded in Europe and some American countries due to the importance of safe operation.
UNITY has in stock cobot palletizer in own factory, which makes fast delivery guaranteed.
The Cobot palletizer’s integrated touchscreen interface eliminates the need for specialized engineers to debug; ordinary workers can operate the system independently after simple training.
Cobot palletizer workstation is lightweight and flexible, requiring minimal floor space. It is easy to move and can be installed and used for palletizing tasks in a short period of time.
Rapidly switch between various functional scenarios, enabling flexible production through human-robot collaboration, dual-robot collaboration, and multi-robot collaboration.
Compared to manual workers, the high speed cobot palletizer does not need rest, and can operate continuously 24 hours a day, significantly improving production efficiency.
UNITY collaborative robot palletizer offers an average payback period of 6-12 months, effectively eliminating high labor and recruitment costs, significantly reducing overall operating costs.
The Cobot palletizer’s integrated touchscreen interface eliminates the need for specialized engineers to debug; ordinary workers can operate the system independently after simple training.
Cobot palletizer workstation is lightweight and flexible, requiring minimal floor space. It is easy to move and can be installed and used for palletizing tasks in a short period of time.
Rapidly switch between various functional scenarios, enabling flexible production through human-robot collaboration, dual-robot collaboration, and multi-robot collaboration.
Compared to manual workers, the high speed cobot palletizer does not need rest, and can operate continuously 24 hours a day, significantly improving production efficiency.
UNITY collaborative robot palletizer offers an average payback period of 6-12 months, effectively eliminating high labor and recruitment costs, significantly reducing overall operating costs.
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |
3C, automobiles, semiconductors, hardware and home appliances, mechanical equipment, kitchen and sanitary ware
Ice bags, masks, tablets, medicine boxes.
Meat, fruit juice, dessert, etc.
3C, automobiles, semiconductors, hardware and home appliances, mechanical equipment, kitchen and sanitary ware
Ice bags, masks, tablets, medicine boxes.
Meat, fruit juice, dessert, etc.
