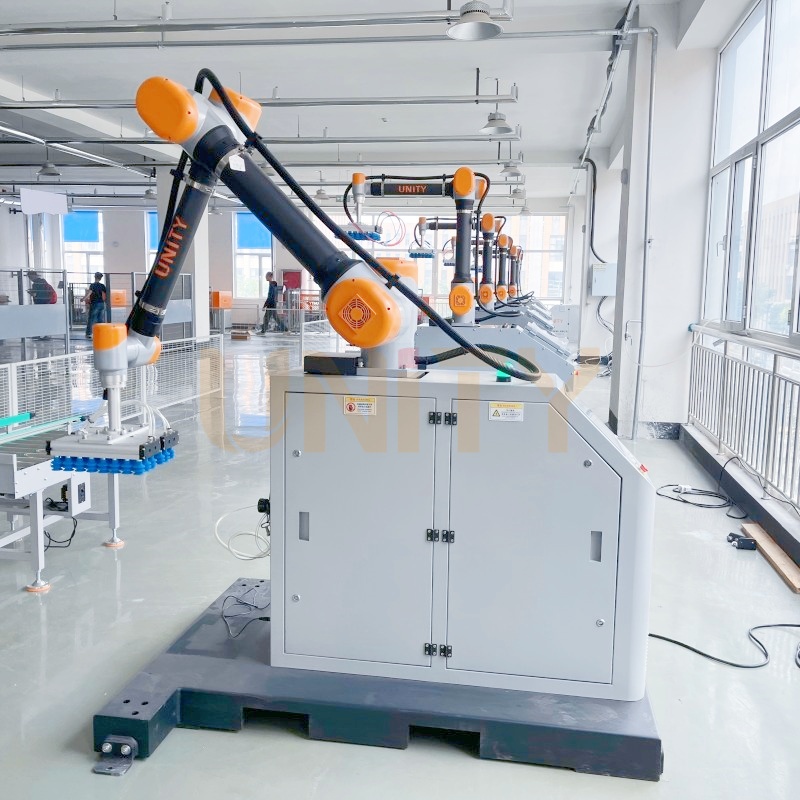

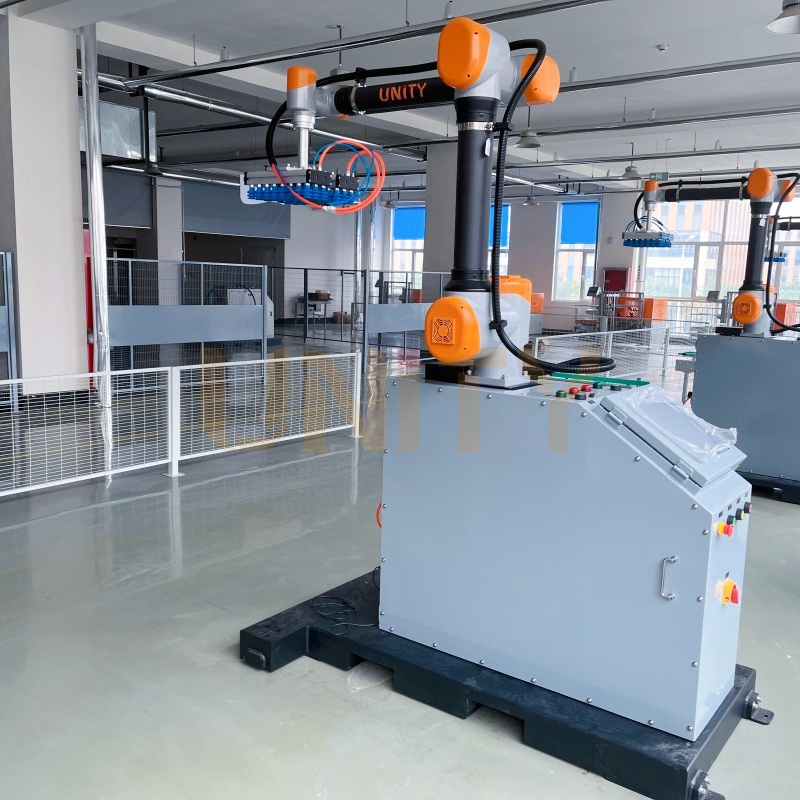

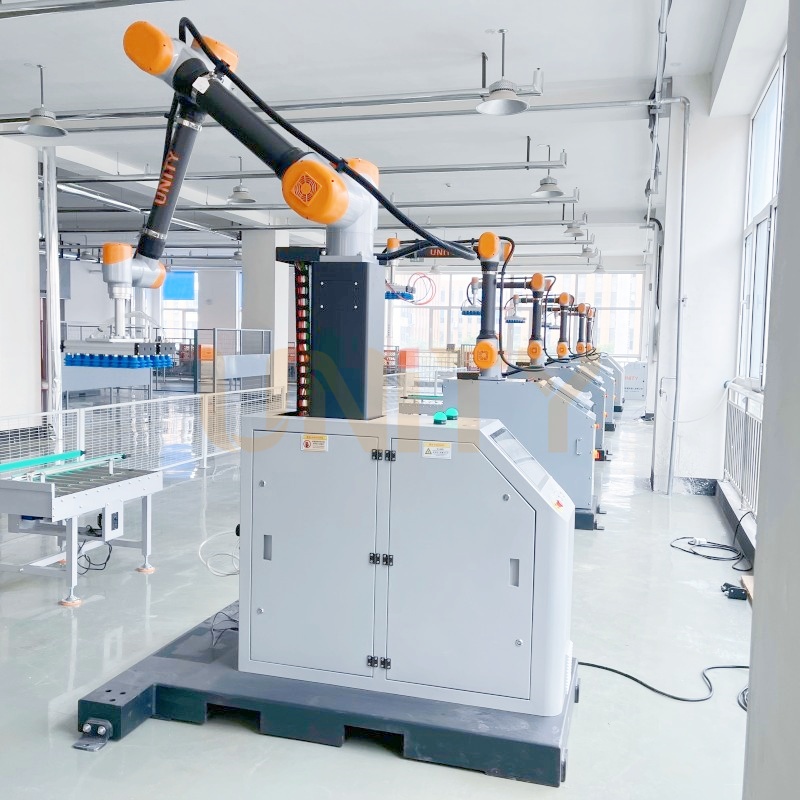

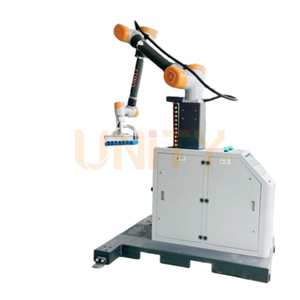

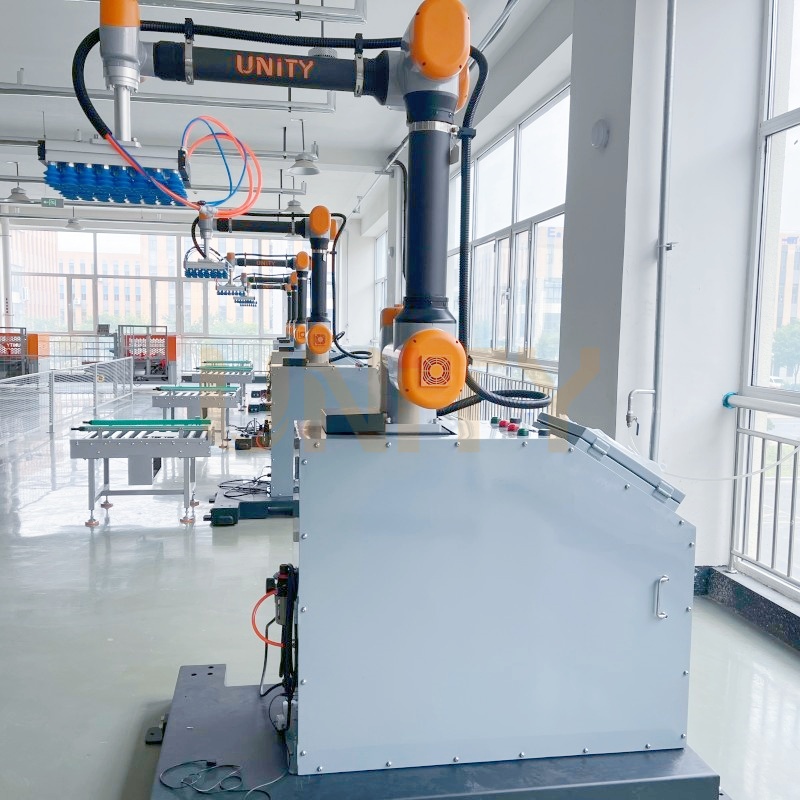

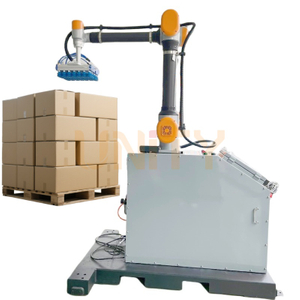

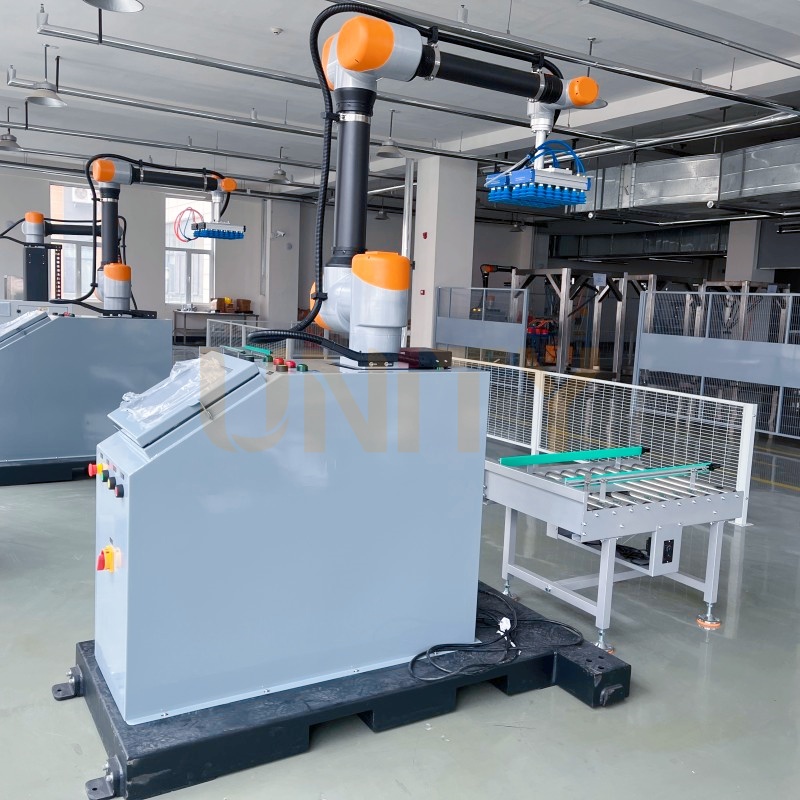

The boxes palletizing cobot, specifically designed for automated palletizing of boxes, is programmable and can continuously and accurately complete various palletizing tasks. It’s a 6 axis cobot robot with gripper for grasping boxes. This significantly improves production efficiency.
Furthermore, it can replace manual labor in high-intensity, repetitive palletizing tasks, effectively reducing worker workload. The cases palletizing cobot's operating precision and stability far exceed those of manual labor, effectively ensuring consistent palletizing quality.
UNITY manufactures palletizing cobot robot with maximum load for boxes of 20kg and 40kg. With the automatic palletizing robot, customers can achieve high effeiency palletizing in packing line.
The boxes palletizing cobot, specifically designed for automated palletizing of boxes, is programmable and can continuously and accurately complete various palletizing tasks. It’s a 6 axis cobot robot with gripper for grasping boxes. This significantly improves production efficiency.
Furthermore, it can replace manual labor in high-intensity, repetitive palletizing tasks, effectively reducing worker workload. The cases palletizing cobot's operating precision and stability far exceed those of manual labor, effectively ensuring consistent palletizing quality.
UNITY manufactures palletizing cobot robot with maximum load for boxes of 20kg and 40kg. With the automatic palletizing robot, customers can achieve high effeiency palletizing in packing line.
With advanced control systems and mechanical structures, Palletzing Cobot Robot enables fast and accurate palletizing.
Boxes Palletizing Cobot can handle items of various shapes, sizes, and weights, meeting the needs of different industries. They can also be integrated into production lines.
Designed and built with safety, Automatic Palletizing Robot can detect and avoid potential hazards during operation, ensuring the safety of both operators and the equipment.
Collaborative palletizers offer stable and durable performance. They maintain consistent operation over long periods, reducing breakdowns and maintenance costs.
With advanced control systems and mechanical structures, Palletzing Cobot Robot enables fast and accurate palletizing.
Boxes Palletizing Cobot can handle items of various shapes, sizes, and weights, meeting the needs of different industries. They can also be integrated into production lines.
Designed and built with safety, Automatic Palletizing Robot can detect and avoid potential hazards during operation, ensuring the safety of both operators and the equipment.
Collaborative palletizers offer stable and durable performance. They maintain consistent operation over long periods, reducing breakdowns and maintenance costs.
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |

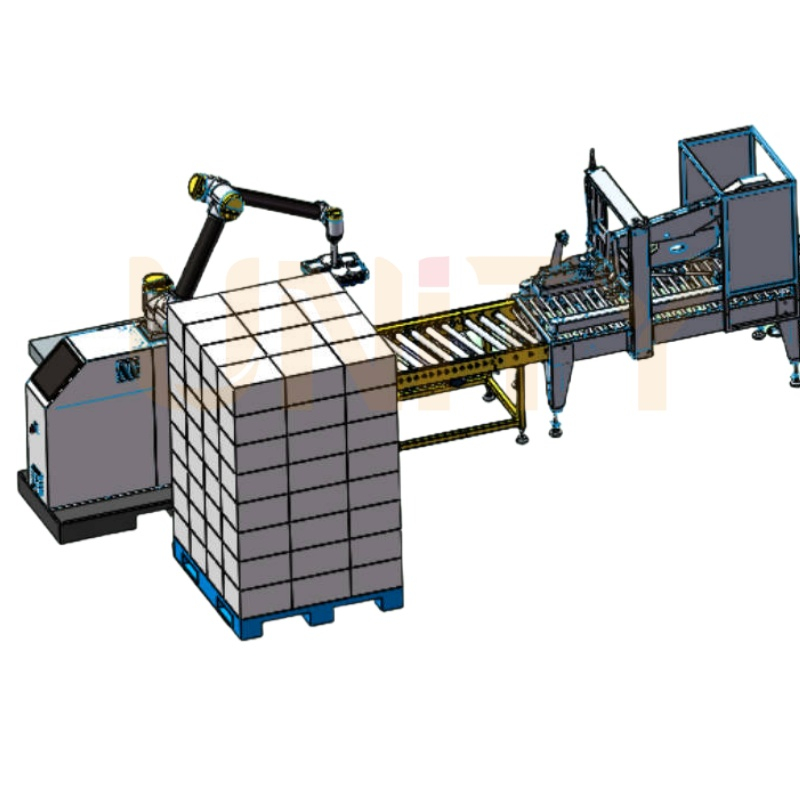

Collaborative palletizers can be used at the end of production lines to automate palletizing tasks.
Palletizing cobot robots can replace manual palletizing, enabling fast and accurate stacking and moving of goods.
Widely used in the food and beverage sector, collaborative palletizers help maintain hygiene and safety during palletizing, in line with strict sanitary standards.
In these fields, collaborative palletizers handle items of various shapes and sizes, including fragile, deformable, or other specialized products.
Collaborative palletizers can be used at the end of production lines to automate palletizing tasks.
Palletizing cobot robots can replace manual palletizing, enabling fast and accurate stacking and moving of goods.
Widely used in the food and beverage sector, collaborative palletizers help maintain hygiene and safety during palletizing, in line with strict sanitary standards.
In these fields, collaborative palletizers handle items of various shapes and sizes, including fragile, deformable, or other specialized products.
