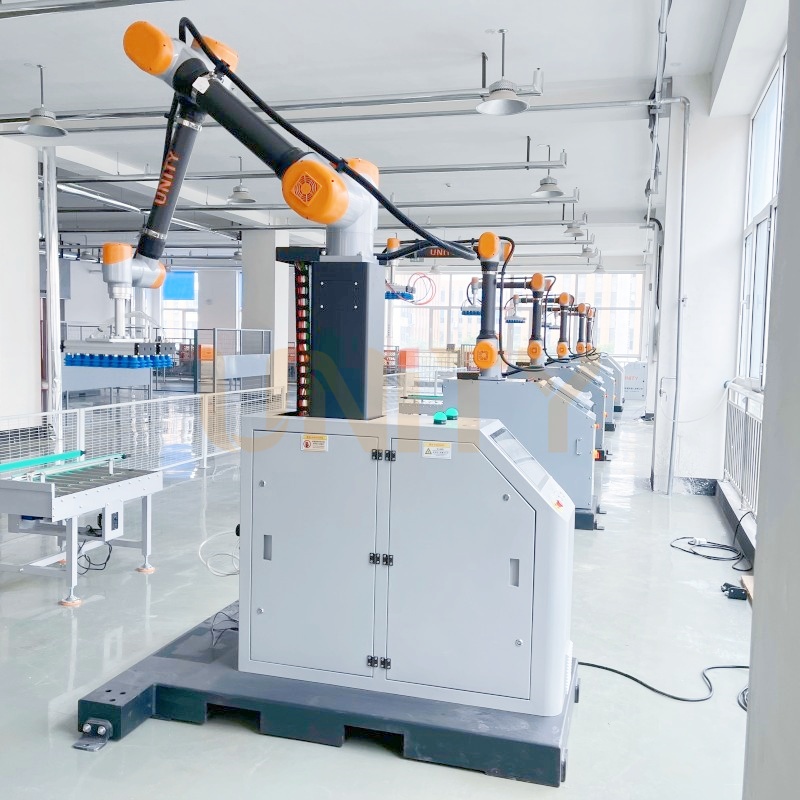

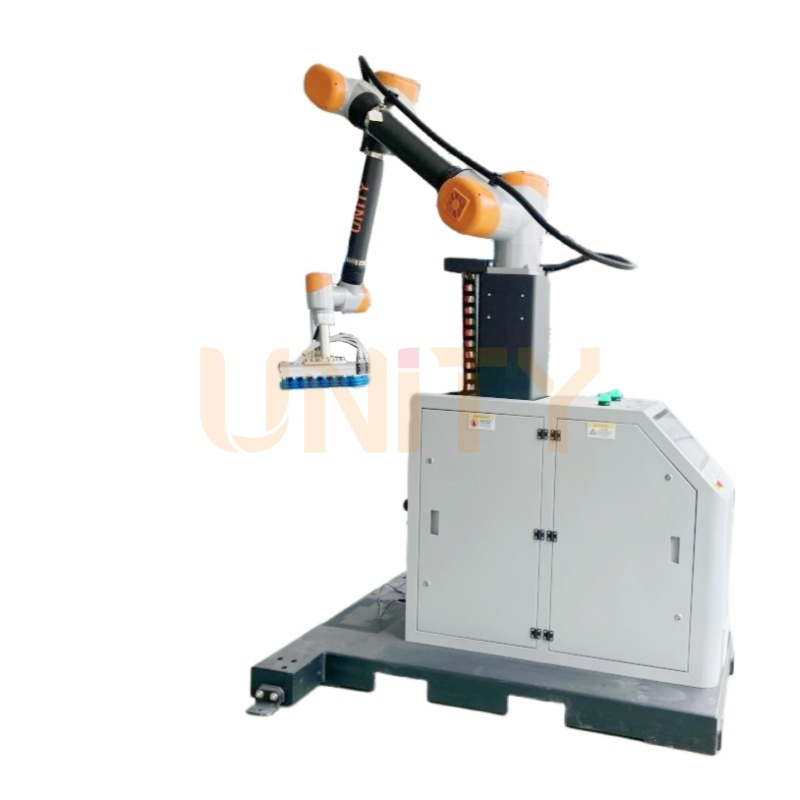

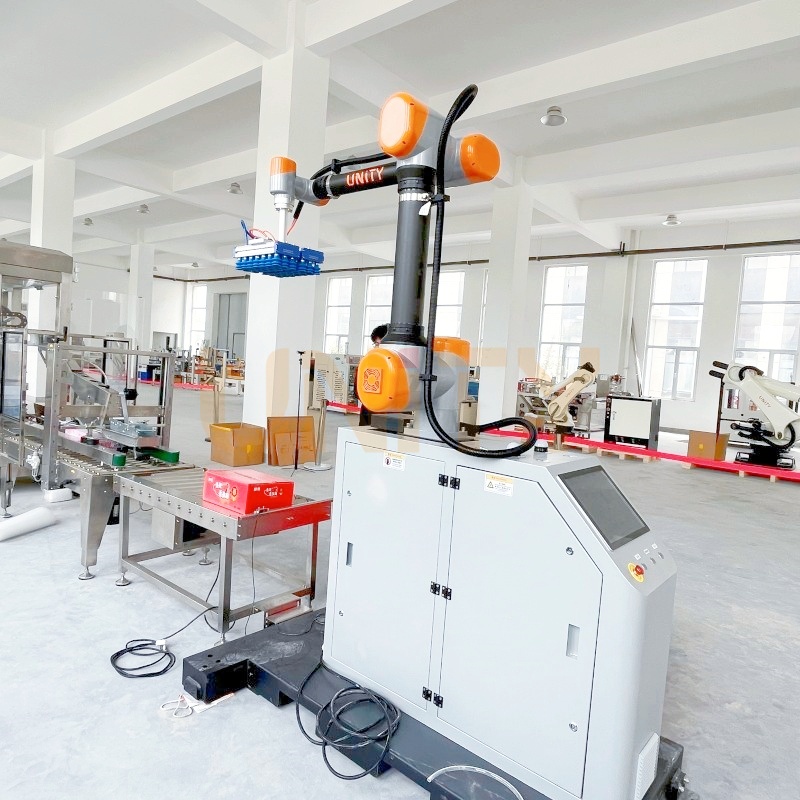

A Cobot robot palletizer mainly includes collaborative robots, electrical box control cabinets, base and pallet positioning systems, palletizing control systems and other parts.
The Cobot palletizer is for stacking boxes. It usually loads boxes within 20kg/40kg. And 20kg cobot palletizer is most hotsell type. UNITY is cobot palletizer factory, which provides high cost effective collaborative cobot palletizer.
Besides, our standard models are all equipped with lifting function, which can extra lift 600mm. The boxes cobot palletizer is fully automatic robot and can work with human. It is with a speed range of 6-10 boxes/minute when palletizing.
A Cobot robot palletizer mainly includes collaborative robots, electrical box control cabinets, base and pallet positioning systems, palletizing control systems and other parts.
The Cobot palletizer is for stacking boxes. It usually loads boxes within 20kg/40kg. And 20kg cobot palletizer is most hotsell type. UNITY is cobot palletizer factory, which provides high cost effective collaborative cobot palletizer.
Besides, our standard models are all equipped with lifting function, which can extra lift 600mm. The boxes cobot palletizer is fully automatic robot and can work with human. It is with a speed range of 6-10 boxes/minute when palletizing.
Compared to traditional industrial robots, boxes cobot palletizer composed of collaborative robots takes up less space and is more flexible.
It offers greater safety and can work collaboratively with humans.
Quick changeover capability: Supporting graphical programming, even workers with no prior experience can set up new tasks using a drag-and-drop tablet, reducing line changeover time to 5 minutes.
Overall cost reduction: Long-term use can save on labor costs, and training expenses.
Compared to traditional industrial robots, boxes cobot palletizer composed of collaborative robots takes up less space and is more flexible.
It offers greater safety and can work collaboratively with humans.
Quick changeover capability: Supporting graphical programming, even workers with no prior experience can set up new tasks using a drag-and-drop tablet, reducing line changeover time to 5 minutes.
Overall cost reduction: Long-term use can save on labor costs, and training expenses.
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg | |

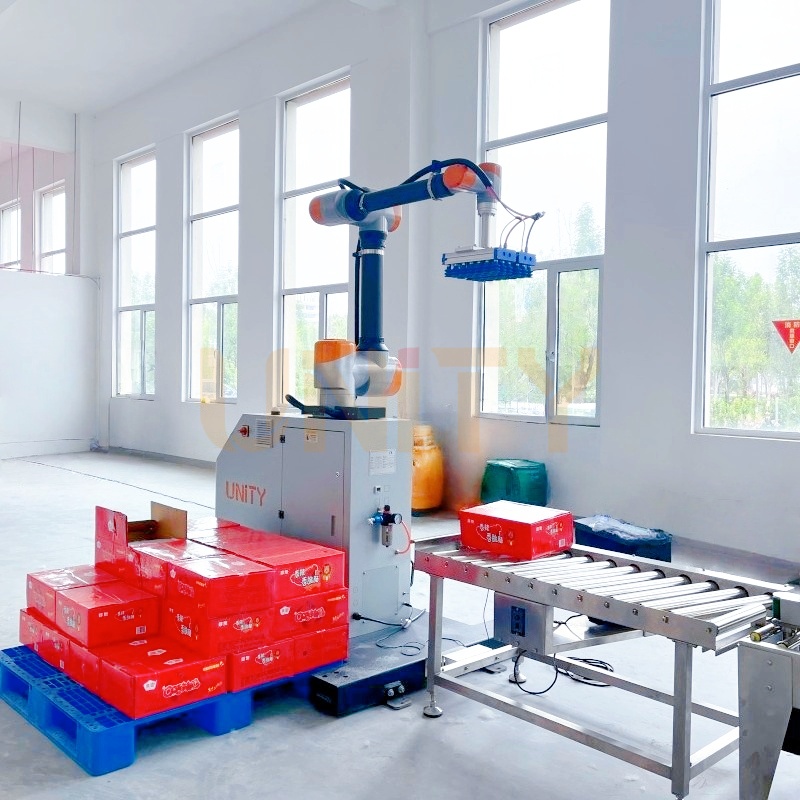

Palletizing cartons of instant noodles and frozen foods; Dairy Products/Condiments; also there’s a rapid demand growth in pet food palletizing
Palletizing shampoo and skincare products in irregular-shaped bottles. Rapid programming supports setting up new pallet configurations in under 10 minutes.
Palletizing cobot robot system integration can be used to palletize a variety of pharmaceuticals, such as tablets, capsules, injections, and oral liquids.
Palletizing cobot robot system integration can be used to palletize a variety of electronic products, such as mobile phones, computers, televisions, and refrigerators.
Palletizing cartons of instant noodles and frozen foods; Dairy Products/Condiments; also there’s a rapid demand growth in pet food palletizing
Palletizing shampoo and skincare products in irregular-shaped bottles. Rapid programming supports setting up new pallet configurations in under 10 minutes.
Palletizing cobot robot system integration can be used to palletize a variety of pharmaceuticals, such as tablets, capsules, injections, and oral liquids.
Palletizing cobot robot system integration can be used to palletize a variety of electronic products, such as mobile phones, computers, televisions, and refrigerators.
