Cobot robot are the latest technology in robotics and have changed the world of automation significantly. The Full name of cobot is collaborative robot. These robots are collaborative since they can securely operate alongside humans. This capability stems from their integration of responsive sensors that grant the robot "tactile awareness". Should the robot be disrupted during its tasks, it will immediately activate a safety protocol. In contrast, conventional robots would merely persist in their operations, posing a risk of harm to people.
Besides working with people, cobot robot have some other good points. Cobots have made things fair for small and medium - sized makers. For many years, big makers had an advantage in automation by using old industrial robots. But these big, costly, and complicated robots were made for high - volume and unchanging production - not like the low - volume, varied production that small makers usually do.
Collaborative cobot robot has become a flexible, affordable, and easy - to - use technology. It lets companies of almost any size work better, make better quality products, and react faster to what customers want. It's a good way to deal with different problems that businesses face.

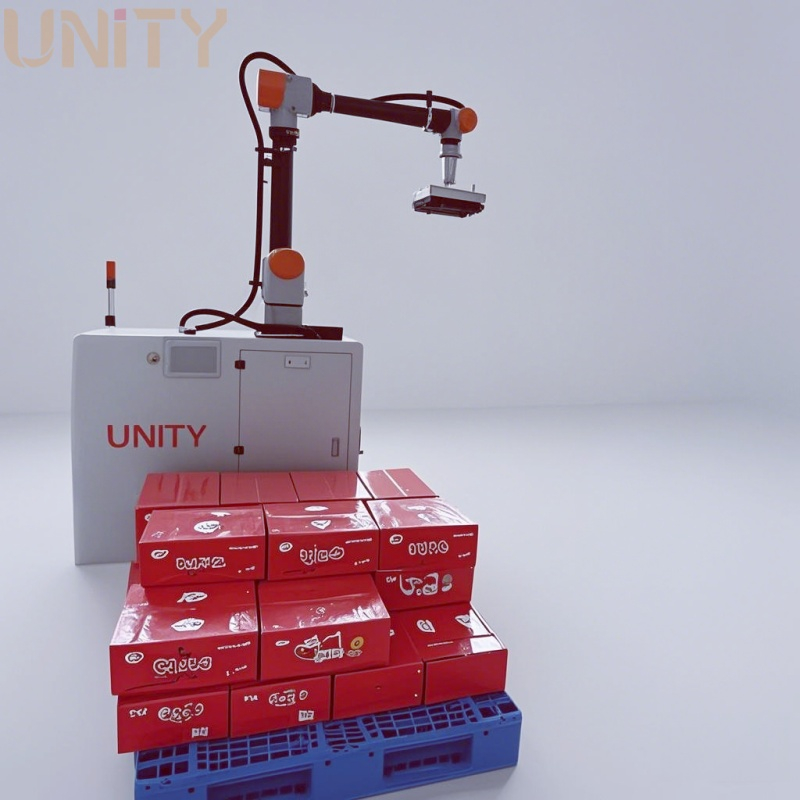

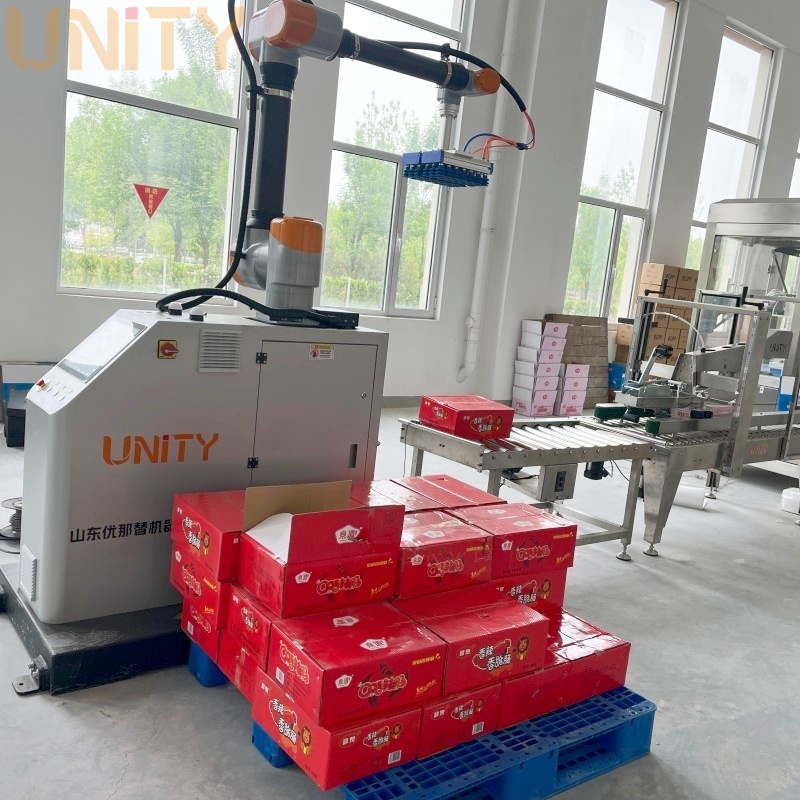

In Packaging Equipment field, cobot robot is mainly working as palletizing robot. In automated production, packaging, as the final process, also needs to be upgraded to automation.
We manufacture cobot robot with different loading capacity, therefore we provide cobot robot with factory direct price and high cost performance. In general, cobot robot palletizer price is absolutely worth the cost.
Product Advantages
1. Compact
Cobots are small, compact robots and can therefore be used almost anywhere in a production process without taking up too much space.
2. Installing and programming
A cobot is easy to install by anyone and simple to program. With handy apps and software for smartphones and desktops, a cobot is operational in no time.
3. Flexible
A cobot can easily learn new operations and is therefore able to work in different places in the production process.
4. Mobile
Cobots are not heavy and easy to move around. Mounted on a mobile workbench, they can easily perform new tasks at a different location within a company.
5. Consistent and precise
Cobots always perform actions in the same way with exactly the same force. This ensures equal quality and accurately placed parts.
6. Positive effect on employees
Employees are spared monotonous or dangerous actions and are enabled to develop themselves by doing more creative work.
7. Reduction of production costs.
Through the use of cobots, processes are streamlined and production goes up. Ultimately, this leads to a better bottom line.
Technical Parameters
Model | YNT CS20-1680 | YNT-CS20-1880 | YNT-CS40-1780 | YNT-CS40-1980 | |
Working radius | 1680mm | 1880mm | 1780mm | 1980mm | |
Max Playload | 20kg | 20kg | 40kg | 40kg | |
Palletizing Height | ≤2450mm | ≤2550mm | ≤2550mm | ≤2650mm | |
Maximum size of pallet | 1200x1200mm | 1300x1200mm | 1200x1200mm | 1400x1200mm | |
Palletizing Speed | 8-10 cartons/min (Depends on goods features ) | ||||
Repeat positioning Accuracy | ±0.04mm | ±0.04mm | ±0.04mm | ±0.04mm | |
Power Consumption | 3000W | 3000W | 4000W | 4000W | |
Voltage | 220V | 220V | 220V | 220V | |
Connection | EtherCAT | EtherCAT | EtherCAT | EtherCAT | |
IP Level | IP54 | IP54 | IP54 | IP54 | |
Humidity range | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | 0℃~55℃ | |
Length x Width | 1505x1716mm | 1505x1716mm | 1505x1716mm | 1505x1716mm | |
Net Weight | 600kg | 600kg | 650kg | 650kg |
Product Uses
1. Food and beverage: Automatically load and unload bags, cartons, and bottles of food and drink.
2. Biochemical Industry: By using visual system to quickly and accurately pick and place tablets, ensuring that the types and quantities meet the requirements.
3. Industrial Manufacturing: CNC machining of metal parts by connected to CNC system.
4. Warehousing and logistics: Automatically finish the stacking and moving of goods to boost warehousing efficiency.
