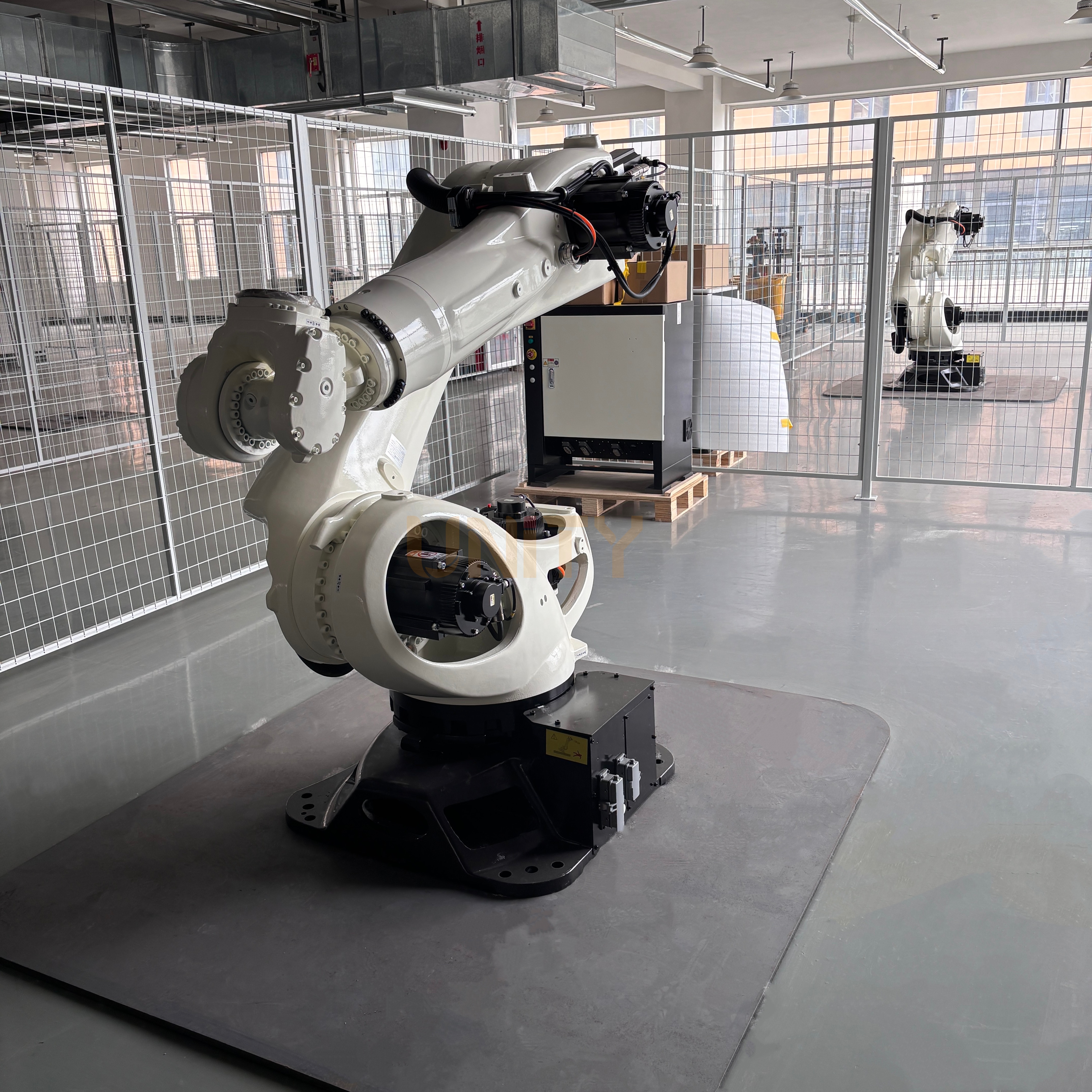

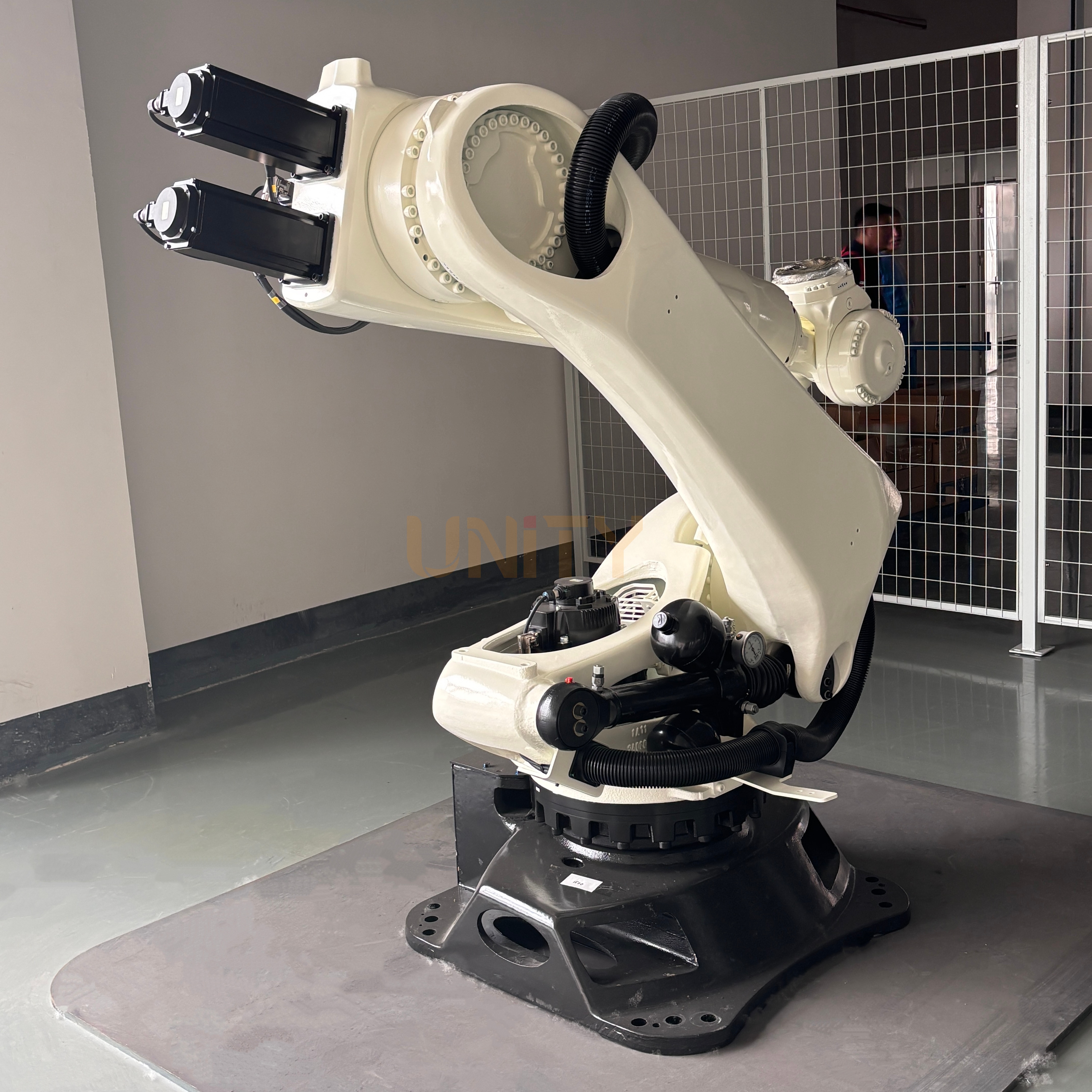

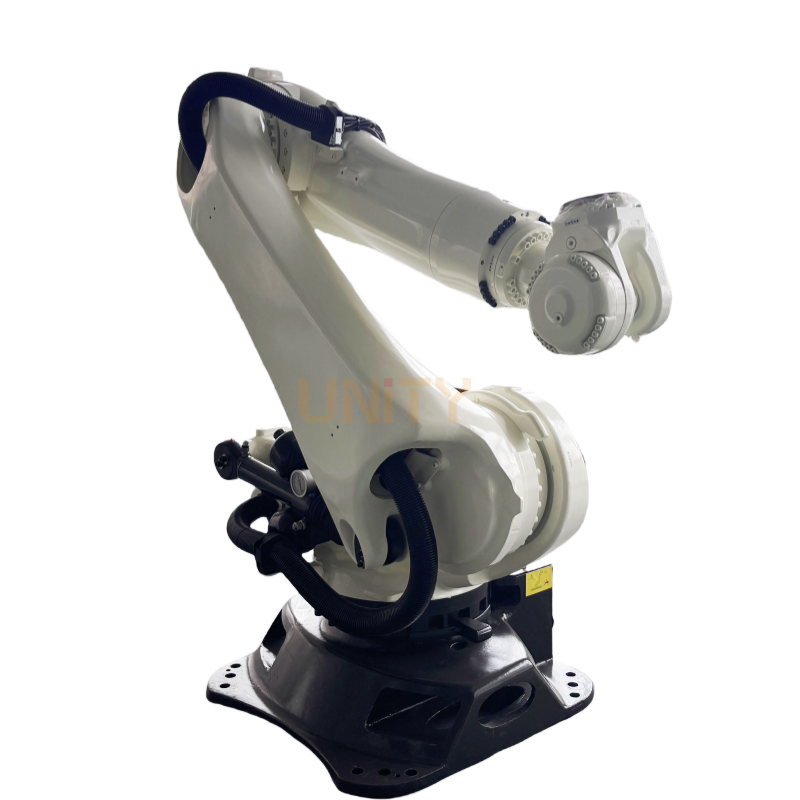

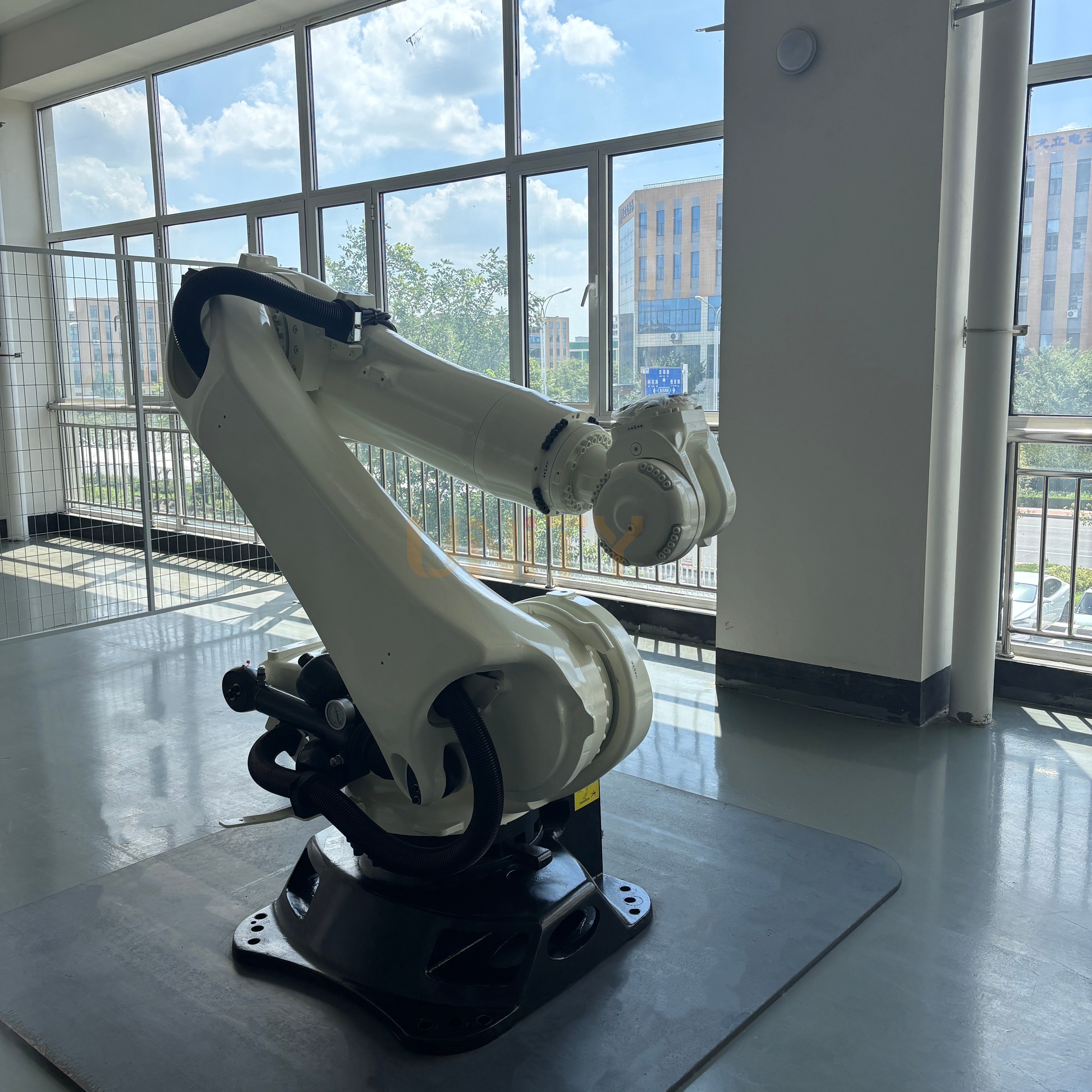

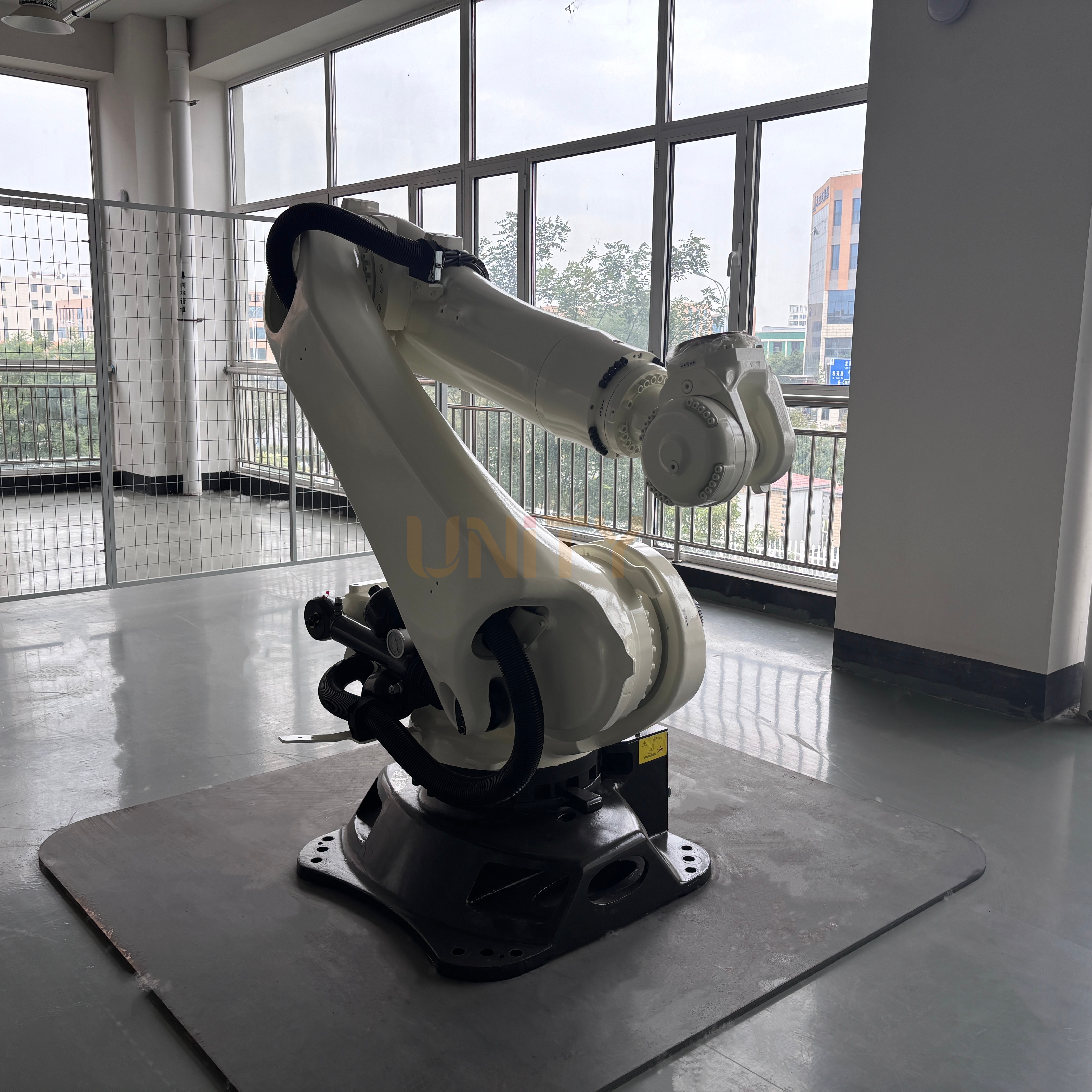

Automatic Palletizing Robot Payload 50kg Bag Palletizer Machine

1. Large payload and efficient operation meet high-intensity production demands:

This heavy-duty robot is optimized for palletizing bagged materials weighing 20-50 kg. Its highly rigid mechanical structure ensures stable and precise operation even under heavy loads. It can achieve palletizing speeds of up to 1,200 cycles per hour and operate 24/7, bringing your production line efficiency to new heights. It perfectly replaces traditional manual labor or inefficient equipment, delivering an extremely high return on investment.

2. Intelligent algorithms and multiple palletizing configurations enable one-click production switching:

Built-in advanced palletizing robot programming software boasts a rich library of palletizing configurations. Users simply select presets on the touchscreen or drag and drop via the graphical interface to quickly generate new palletizing paths, enabling one-click switching between different products and pallet configurations. This significantly reduces downtime caused by product changeovers and is particularly suitable for flexible, high-variety production requirements.

3. High-precision servo control and stable motion ensure neat and reliable stacking:

Utilizing a full servo control system and precision reducer, the robot achieves a repeatable positioning accuracy of ±0.5mm. Every movement is smooth and precise, ensuring that every bag and box of material is accurately placed in its intended location. The resulting stacks are neat, compact, and stable, significantly reducing the risk of tilting or collapse during transportation and ensuring cargo safety.

4. Durability and low maintenance ensure long-term reliable operation:

Key components are sourced from renowned brands, ensuring exceptional reliability. The optimized structure ensures robustness and durability. The modular design makes routine maintenance quick and easy, effectively reducing long-term operating and maintenance costs.

YNT-PR50-2050
Wrist rated load	50kg
Max working radius (mm)	2050
Degrees of freedom	6 axis
Rated load speed	J1	160 °/s
	J2	120°/s
	J3	120°/s
	J4	225°/s
	J5	225°/s
	J6	225°/s
Joint motion range (°)	J1	±185°
	J2	-85°~+135°
	J3	-200°~+75°
	J4	±360°
	J5	±120°
	J6	±360°
Protection level	IP54
Repeat positioning accuracy (mm)	+0.06mm
working temperature	0-45°

1. Fertilizer and Feed Industry:

Perfectly suited for palletizing 25kg-50kg fertilizer and feed bags. The robot can withstand dusty environments in the workshop and stably stacks finished bags into neat stacks for easy storage and transportation.

2. Food and Beverage Industry:

Suitable for handling boxed beverages, food ingredients, and more. Its high precision and clean design (optional stainless steel) meets the hygienic requirements of the food industry and enables efficient stacking.

3. Chemical and Building Materials Industry:

Handles bagged or drummed materials such as putty powder, cement, and resin. The robot's high strength and stability ensure reliable operation in corrosive or high-intensity environments.

4. Logistics and Warehousing Center:

As part of an automated warehousing system, it enables unmanned transfer operations from production lines to pallets and shelves, a core component of intelligent logistics solutions.
