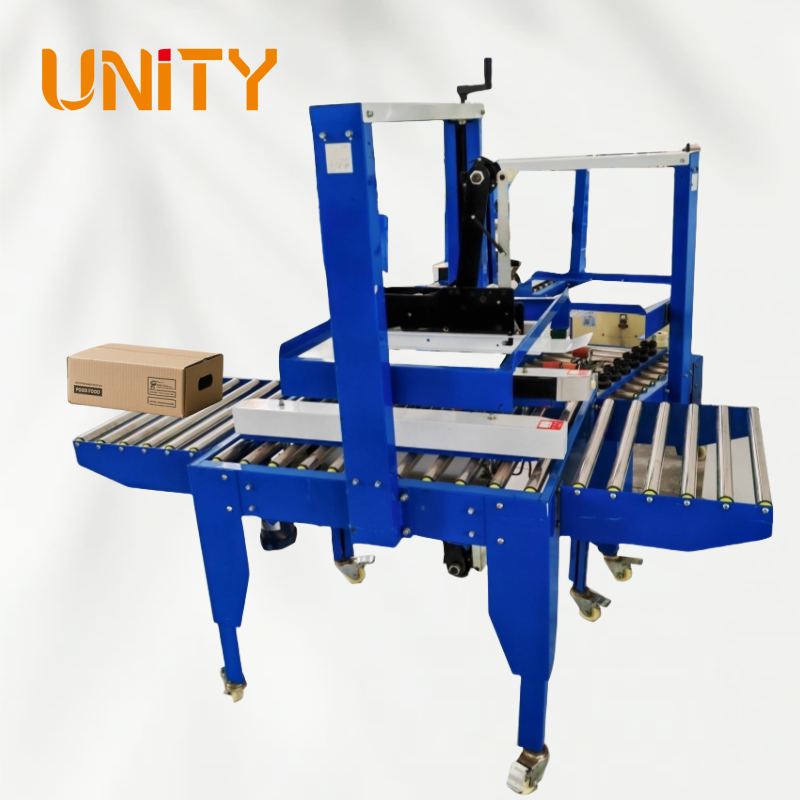

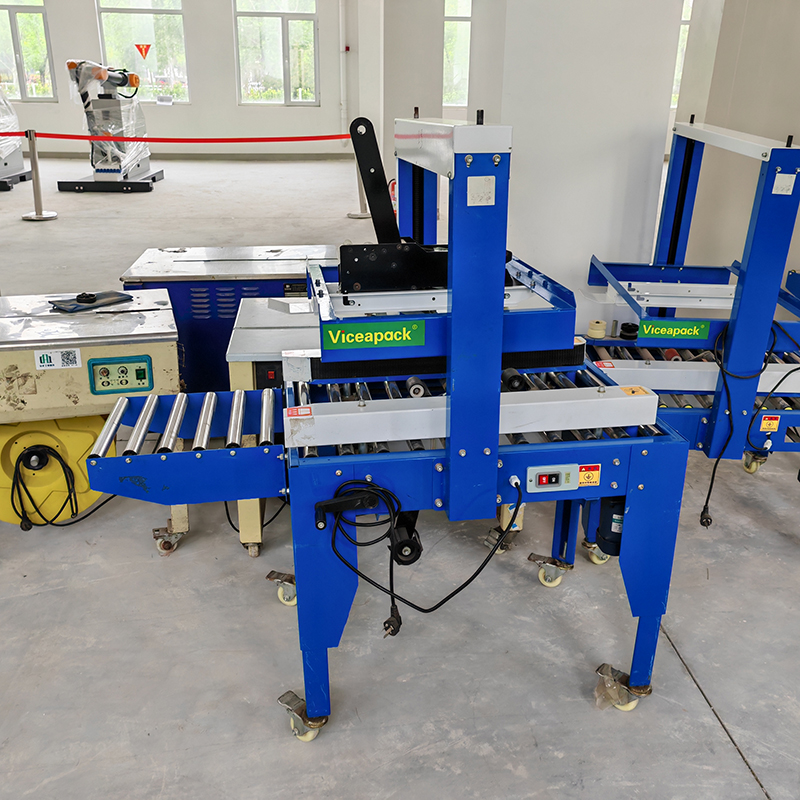

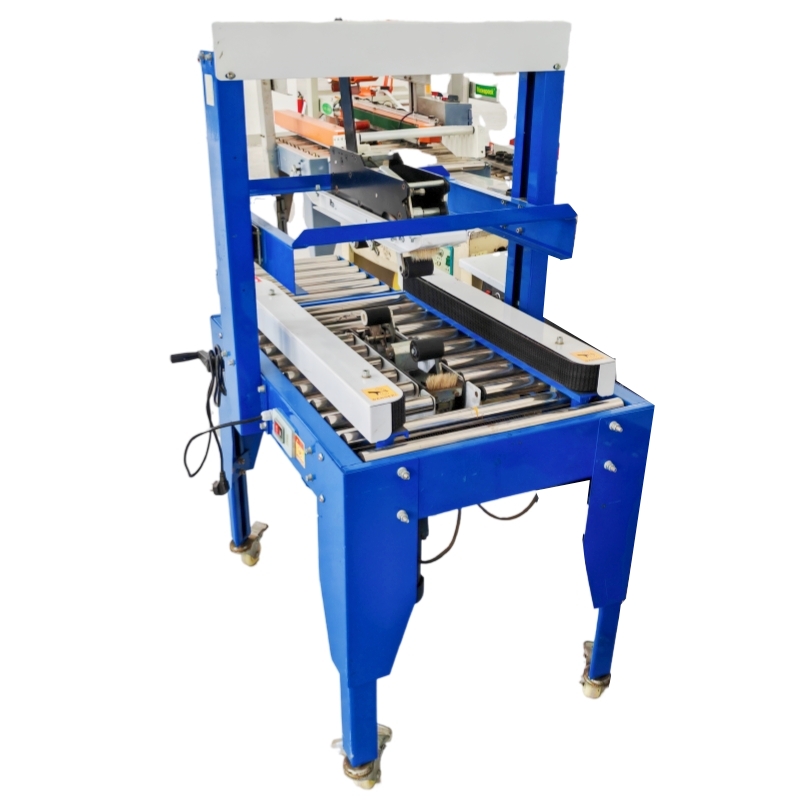

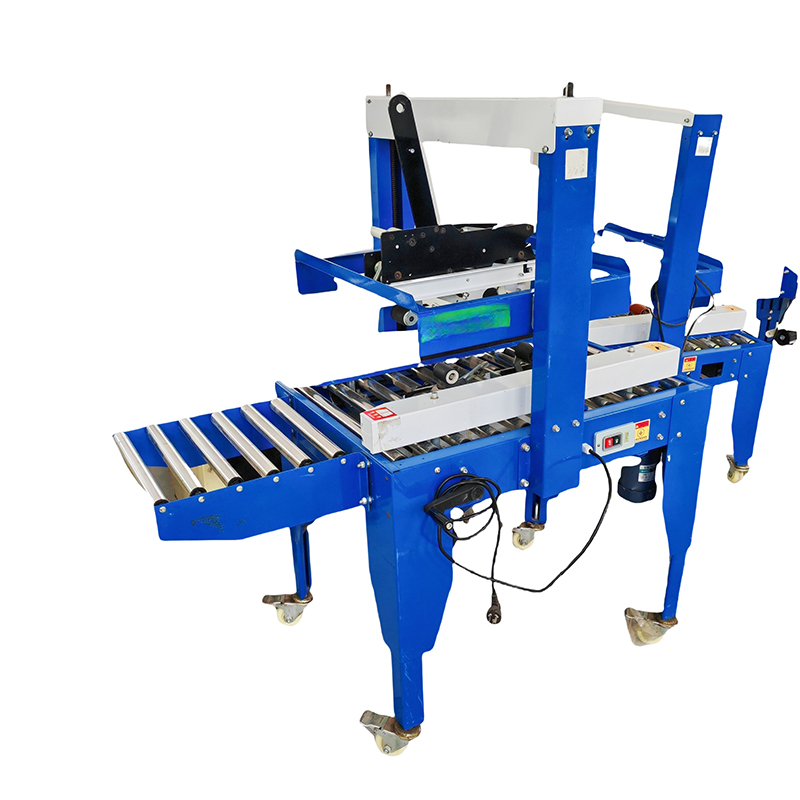

Top and Bottom Side Belt Small Business Case Carton Box Sealer Packaging Machine

Our Box Sealing Machine is an efficient Automatic Packing Machine designed for Carton Box Packing operations. This Automatically Packaging Machine features a high-precision Tape Box Sealer system that ensures smooth and secure sealing for various box sizes.

With adjustable settings and durable construction, our Customized Carton Sealing Machine can be tailored to meet your specific packaging needs. It significantly improves productivity while reducing labor costs in logistics, e-commerce and manufacturing industries.

Product Features

• Easy to operate: no complex training is required, operators can easily get started, manually assist in placing cartons, and the machine automatically completes the sealing process.

• Lightweight and durable: the overall structure is compact, the material is sturdy and durable, it can adapt to high-intensity daily production work, and it occupies a small area and is easy to place.

• Efficient sealing: the upper and lower sides of the carton can be sealed at one time, greatly improving packaging efficiency and reducing the time cost of manual sealing.

• Flexible adjustment: the width and height of the carton sealer can be manually adjusted quickly according to different specifications of cartons to meet diverse packaging needs.

• Image enhancement: it supports the use of printed tape for sealing, which helps to enhance the product brand image and stand out in the transportation and sales links.

Technical Parameters

Operation Process

1. Preparation:

① Check whether the appearance of the equipment is damaged and whether the connections of each component are stable.

② Confirm that the power connection is normal and the voltage meets the equipment requirements.

③ According to the size of the carton to be sealed, manually adjust the width adjustment handle and height adjustment handle of the carton sealer to adapt the equipment to the carton specifications. Pay attention to the scale mark when adjusting to ensure accurate adjustment.

④ Install the tape roll of appropriate width to the tape rack, adjust the position of the tape so that it can be transported smoothly, and pull out a section of tape, bypass each guide roller in turn, and ensure that the tape path is correct.

2. Box sealing operation

① Connect the power supply of the equipment and turn on the power switch. At this point, the equipment enters a standby state.

Manually place the paper box with the open side facing upwards at the rear end of the conveyor belt, ensuring that the seam to be sealed of the paper box is in the same direction as the conveyor belt's movement direction.

② Push the paper box forward to enter the sealing area. When the paper box triggers the photoelectric sensor, the equipment automatically starts the sealing process. The adhesive tape will automatically stick to the upper and lower surfaces of the paper box, and the pressure wheels will press down the adhesive tape, and the cutting device will cut off the adhesive tape, completing one sealing action.

③ After the sealing is completed, manually remove the sealed paper box from the front end of the conveyor belt and place it at the designated position.

3. End of work

④ When the workday ends or the equipment is temporarily not in use, turn off the power switch and unplug the power plug. Clean the surface of the equipment and the surrounding debris, tape scraps, etc., and keep the working area tidy.

4. End of work

① When the work on the day is completed or the equipment is temporarily not in use, turn off the power switch and unplug the power plug.

② Clean up the debris, tape scraps, etc. on the surface of the equipment and around it, and keep the working area tidy.
