  • YNT-PR180-3150

  • Unity

Availability:
Quantity:

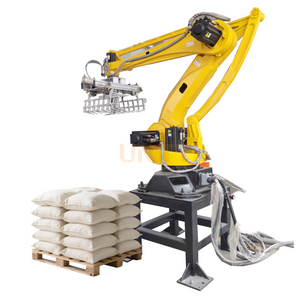

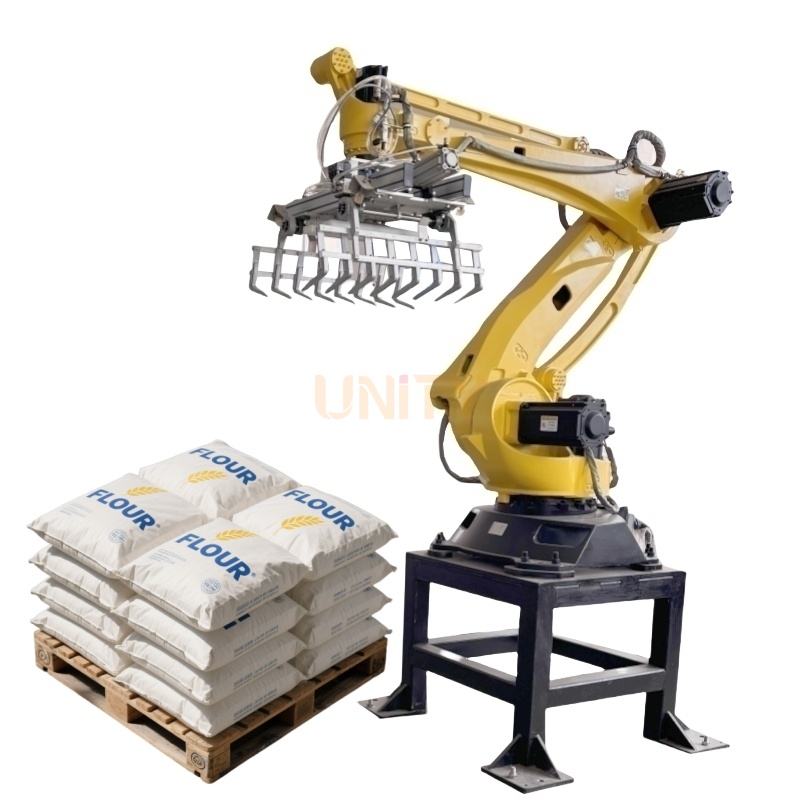

Palletizing robots like the Robotic Palletizer are automated devices that replace manual material stacking. Their core function is to neatly stack bagged and boxed materials in a pre-set pattern, with specialized models such as the Bags Robot Palletizer and 25kg Bags Robot Palletizer tailored for bagged goods and 25kg bags respectively. They precisely grasp materials and neatly stack them onto pallets in pre-set configurations, while the Full Robotic Palletizing System handles diverse needs. They can stack materials in multiple layers to accommodate varying specifications. Through programming, they automatically complete grasping, moving, and placing, improving efficiency and stability while reducing labor intensity.


1. Excellent Heavy-Load Capacity

Designed specifically for heavy materials,Robot arm palletizing can reliably grasp and stack bagged or boxed goods weighing up to 50 kg, including those in Automatic Flour Palletizing scenarios, handling heavy manual labor difficult for humans.

2. Extremely High Operational Stability and Reliability

Whether for Automatic Flour Palletizing or other tasks, systems feature robust mechanical structures and high-quality components, maintaining stable operation under heavy loads to ensure continuous production lines.

3. Significantly Reduced Labor and Management Costs

Custom Palletizing Solutions replace multiple workers in heavy labor, delivering long-term returns with one-time investment while eliminating work-related injury and fatigue risks.

4. Long-lasting, Efficient, and Precise Operation

Robot arm palletizing operates at high speed 24/7 with high repeatability, ensuring neat, stable pallets—critical for Automatic Flour Palletizing—and improving storage space use.

5. Powerful Flexible Adaptation and Rapid Switching

Custom Palletizing Solutions allow easy programming adjustments to palletizing patterns, quickly adapting to diverse products and specs, ensuring flexible conversion.

6. Improved Work Environment and Safety

Freeing workers from tedious, high-risk labor in tasks like Automatic Flour Palletizing lets them focus on maintenance and management, boosting safety and satisfaction.


Performance Parameters

Type

YNT-PR180-3150

Axlex

4

Load

180kg

Max working radius

3150mm

Weight

1850kg

Joint speed

J1

130°/S

J2

130°/S

J3

130°/S

J4

300°/S

J5

-

J6

-

Joint range

J1

±180°

J2

-42°C~+85°C

J3

-20°C~+120°C

J4

±300°

J5

-

J6

-

Protection level

IP54

Position repeatability

±0.1mm

Working environment

0°C~45°C


1. Fertilizer and Feed Industry:

Designed for automated palletizing of various bagged fertilizers and feed products, it replaces intensive manual labor, protects employee health, and significantly improves warehouse delivery efficiency.

2. Grain and Food Processing:

Widely used at the end of production lines for bagged foods such as rice, flour, and sugar, it achieves efficient and neat palletizing that meets hygiene and safety standards.

3. Building Materials and Chemical Industries:

Complete stacking operations for heavy bagged materials such as cement, putty powder, and resin. Dust-resistant and corrosion-resistant, the system operates stably and reliably, reducing the risk of occupational injury.

4. Logistics and Warehousing Centers:

Automatically stacking bagged goods onto pallets in warehouses, enabling rapid sorting and transfer, is a key component of intelligent warehousing and logistics systems.


Q: What are the payment methods?

A: Payment method: 30% down payment is required after the contract is signed. The seller will start production and the remaining 70% balance is required before shipment.
